414 6.5 TON

414 6.5 TON

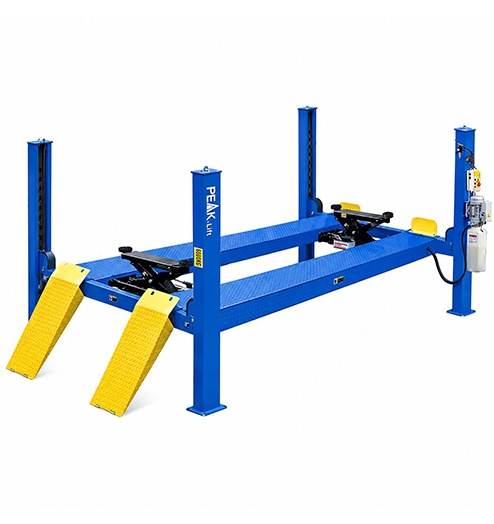

Heavy Duty General Service Four Post Lift 414

The PEAK 414 is a Heavy Duty model engineered to cater to the demands of a versatile workshop. With a generous capacity of 6500KG, it effectively accommodates vehicles across various weight classes, ranging from passenger cars and vans to trucks and motor homes.

The PEAK 414 Heavy Duty General Service Four Post Lift is a commercial-grade automotive lift manufactured by Peak Corporation, offering a significantly increased load capacity of 6,500 kg (14,000 lbs) compared to the lighter 410 model. Powered by a robust 4.0 HP motor, it can raise heavy vehicles to a maximum lifting height of 1,865 mm (73.5 inches) in approximately 60 seconds.

The system utilizes a high-strength under-runway hydraulic cylinder and cable assembly, backed by a dual safety setup featuring continuous spring-loaded mechanical lock ladders and an air-operated single-point safety release. Built with a drive-thru clearance of 2,946 mm (116 inches) between the columns, it easily accommodates wider weight-class vehicles ranging from standard passenger vans to delivery trucks, ambulances, and large motor homes.

Capacity: 6500KG

Click here to see the catalog
